| MODEL |
MS III 4.5K |
MS III 6K |
MSIII 8K |
MSIII 10K |
| Input |
Phase |
Single + G |
| Voltage Range** |
110Vac~280Vac |
| Frequency Range |
45~70Hz (Auto Sensing) |
| Input Current Distortion |
≦3% |
| Input Power Factor |
≧0.99 @ Full Load |
| Output |
Capacity |
4500VA/4500W |
6000VA/6000W |
8000VA/8000W |
10000VA/10000W |
| Voltage |
200/208/220/230/240Vac (208/120Vac option) |
| Output Power Factor*** |
1 |
| Output Voltage Distortion |
≦1% @ 100% Linear load |
| ≦3% @ 100% non-linear load with PF=0.9 |
| Output Voltage Regulation |
±1% |
Frequency Range
(Synchronized Range) |
±1Hz or ±3Hz (Selectable) |
| Crest Factor |
3:1 |
| Output Waveform |
Pure Sine Wave |
| Efficiency |
Line Mode |
93% |
94% |
| High Efficiency Mode |
98% |
| Battery |
Number of Battery |
12/14/16 (Standard)
12/13/14/15/16 (Option) |
16/18/20 (Standard)
16/17/18/19/20 (Option) |
| Battery Type |
Sealed Lead Acid Maintenance |
| Recharge Time (to 90%) |
4 hours |
| Charger |
3-mode, 2.1A(max.), Temperature compensation(Option) |
| Display |
Status On LED + LCD |
Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, and Transferring with interruption & UPS Fault |
| Readings On LCD |
Input Voltage, Input Frequency, Output Voltage, Output Current, Output Frequency, Load Percentage, Battery Voltage & Inner Temperature |
| Self-Diagnostics |
Upon Power-on, Front Panel Setting & Software Control, 24 hours routine check |
| Alarm |
Audible or Visual |
Line Failure / Battery Low / Transfer to Bypass / System Fault |
| Protection |
Full Protection |
Overload, Over temperature, Short circuit, Discharge, overcharge |
| Function |
Multi-Mode |
Normal/ ECO/ CVCF |
| DC start |
Yes |
| Parallel capacity |
up to 4 units |
| Parallel redundancy |
3+1 |
| Physical |

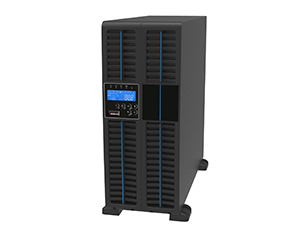

Tower Model |
Dimensions
(WxHxD, mm/inch) |
290x748x645 / 11.4x29.5x25.4 |
| Net Weight (kgs/lbs) |
86/190 |
96/215 |

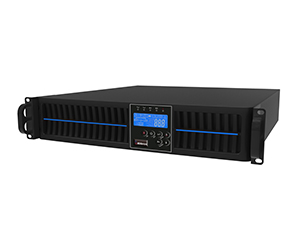

| RT Model |
Dimensions
(WxHxD, mm/inch) |
440x88x680 /
17.3x5.5x26.8 |
440x132x680 /
17.3x5.5x26.0 |
| Net Weight (kgs/lbs) |
18.5/41.44 |
45/99.2 |
| Environmental |
Operation Temperature |
0- 40°C |
| Operation Humidity |
0-95 % (Without condensing) |
| Altitude |
1000m/3300ft without Derating |
| Noise Level |
≦55dBA @ 1 Meter |
≦60dBA @ 1 Meter |
| Interface |
Standard |
USB, EPO |
| Option |
2nd RS232, USB, RS485, Dry Contact Relay, SNMP/WEB Card |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
| Standards and Certifications**** |
Safety |
EN62040-1, UL1778 |
| EMC |
EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A |
| Marks |
CE, UL, cUL, FCC |
| |
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex |
| ** Depending on load percentage |
| *** Depending on battery application |
| **** Depending on the model and voltage, more information please contact with Ablerex |
