Model |
MSII4500 |
MSII6000 |
MSII8000 / 8000P |
MSII10000 / 10000P |
MSII 15000 |
MSII 20000 |
Input |
Voltage ** |
160~280Vac |
160~280Vac (1Φ) / 277~485Vac (3Φ) |
277~485Vac(3Φ) |
Frequency |
45 ~ 65 Hz (Augo Sensing) |
Phase |
Single+G |
Single+G Three+G |
Three + G |
Power Factor **** |
1Ø/1Ø model: Up to 0.99 @ linear load 3Ø/1Ø model: Up to 0.95 @ linear load |
Output |
Voltage**** |
200/208/220/230/240Vac Selectable(208/120Vac optional) |
Capacity |
4050W |
5400W |
7200W |
9000W |
13500W |
18000W |
Frequency (Battery Mode) |
±1Hz or ±3Hz (Selectable) |
Crest Factor |
3:1 Acceptable |
Harmonic Distortion |
< 3% at Linear Load |
Output Waveform |
Pure sine wave |
Transfer Time (AC to DC) |
0ms |
Efficiency |
Up to 91% |
Up to 92% |
Up to 93% |
DC Start |
Yes |
Battery |
Number of batteries |
20pcs |
Type |
Sealed Lead Acid Maintenance Free |
Capacity |
12V/7AH |
12V/9AH |
N/A |
Rated Battery Voltage |
240Vdc |
Recharge Time + 90% |
5 hours |
N/A |
Display |
Status On LED + LCD |
Line Mode / Backup Mode / ECO Mode / Bypass Supply / Battery Low / Battery Fault / Overload / Transferring with interruption / UPS Fault |
LCD |
Input Voltage / Input Frequency / Output Voltage / Output Frequency / Load Percentage / Battery Voltage / Temperature |
Self-Diagnostics |
Upon Power-on / Front Panel Setting & Software Control / 24-hour routine checking |
Alarms |
Audible and Visual |
Line Failure / Battery Low / Transfer to Bypass, System Fault Conditions |
Protection |
Overload Capacity |
Inverter Supply: 105%~150% for 160sec ~2 cycles before Switching Bypass. Bypass Supply: 105%~200% for 500 sec. ~8 cycles before Stopping Supply Load. |
Short Circuit |
Breaker, Fuse / Electronic Circuit |
EPO |
Output Shutsdown immediately |
Over Temperature |
Bypass or Shutdown Immediately |
Physical |
Dimensions |
w/o transformer |
290x748x645 / 11.4x29.5x25.4 |
290 x 748 x 645 / 11.4x29.5x25.4 |
(WxHx D, mm/inch) |
with transformer |
290x74x645/ 11.4x29.5x25.4 |
290x881x465 / 11.4x34.7x25.4 |
N/A |
Weight (kgs/lbs) *** |
86/190 |
8K: 87/192 |
10K: 96/215 |
60 / 132.2 |
8KP: 92/203 |
10KP: 101/223 |
Environmental |
Operating Temperature |
0 to 40℃ / 32 to 104 ℉ |
Noise Level |
<50dBA |
<52dBA |
Altitude |
1000m/3300ft without de-rating |
Humidity |
0 to 90% (Without condensation) |
Interface |
Interface Type |
Standard RS232, EPO |

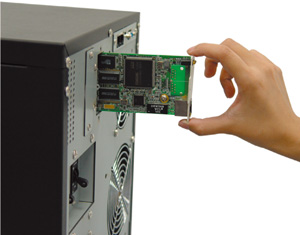

Communication Slots |
Option: 2nd RS232, USB, RS485, Dry Contact Relay, SNMP/WEB Card |
Compatible platforms |
Microsoft Windows series, Linux, Mac, etc. |
Standards and Certifications**** |
Safety |
EN62040-1-1, UL1778 |
EMC |
EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A |
Markings |
CE, UL, cUL, FCC |
*Specifications subject to change without notice. |
|
|
|
|
|
|
**Based on load precentage |
|
|
|
|
|
|
|
***lsoation transfermer : net weight plus 53kg for 6000VA, 10000VA |
|
|
|
|
|

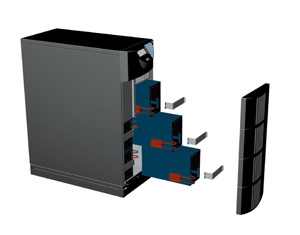

Hot-Swappable : net weight plus 26kg for 6000VA, 10000VA |
|
|
|
|
|
****Depending on the model and voltage, more informaion please contact with Ablerex |
|
|
|
|
|
|
|
|
|
|
|
|
BATTERY BANK |
|
|
|
|
|
|
UPS model |
Code |
Bat. Type |
Max. Quantity |
Dimension (HxWxD mm/inch) |
|
|
|
MSII 4.5K / 6KVA |
T40JXX07 |
7AH |
40 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
MSII 4.5K / 6KVA |
T60JXX07 |
7AH |
60 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
MS II 8K / 10KVA |
T40NXX09 |
9AH |
40 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
MS II 8K / 10KVA |
T60NXX09 |
9AH |
60 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
MSII15KVA / 20KVA |
T60VXX09 |
9AH |
60 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
MSII15KVA / 20KVA |
T40VXX12 |
12AH |
40 |
290x748x631 / 11.4x29.5x24.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
