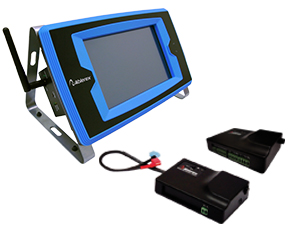

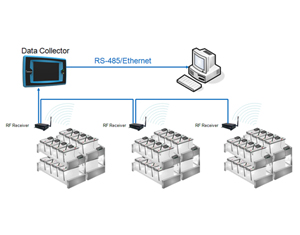

| Model |

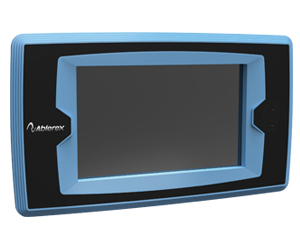

BMS-DC-LCDⅡ (Data Collector) |
| Display |
LCD 7″ Graphic Touch Screen |
| Input Power Supply |
12VDC |
| Power Consumption |
≤ 9W |
| Communication Ports |
Ethernet x 1, RS-485 Modbus RTU x 1 |
| Output Dry Contact Port x 3, Input Dry Contact Port x 1 |
| Monitoring RF Receiver |
Up to 63 RF Receivers |
| Manage Nodes |
Maximum 750 nodes |
| Storage Media |
Up to16 Gigabyte SD/MMC Flash Memory Card |
| Dimensions (WxHxD) |
260 mm x 150 mm x 57 mm/10.2″ x 5.9″ x 2.2″ |
| Weight |
0.85 kg / 1.9 lbs |
| |
|
|
|
|
| Model |

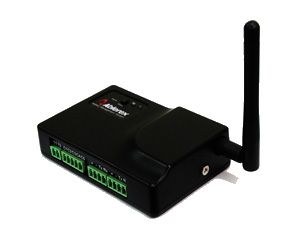

BMS-RFR (RF Receiver) |
| Input Power Supply |
12VDC |
| Power Consumption |
≤ 3W |
| Receiving Interface |
RF 2.4 GHz for wireless#1 |
| Monitoring Nodes |
Maximum 256 nodes |
| Dimensions (WxHxD) |
129 mm x 70 mm x 35.5 mm / 5.1″ x 2.7″ x 1.4″ |
| Weight |
0.4 kg / 0.9 lbs |
| |
|
|
|
|
| Model |

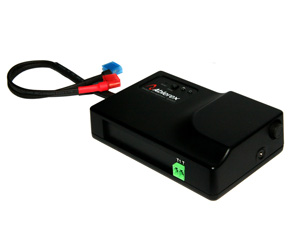

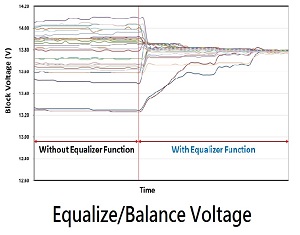

BMS-BMK (Battery Measure Kit) |
| Block Voltage |
2 V |
6 V |
12 V |
| Voltage Measurement Range |
1.48-4.00 V |
4.2-8.0 V |
8.5-16.0 V |
| Accuracy |
±10 mV |
| Battery Impedance Resolution |
0.01 mΩ |
0.03 mΩ |
> 65 Ah |
< 65 Ah |
| 0.03 mΩ |
0.10 mΩ |
| Temperature Measurement #2 |
0-100°C ±1°C / 32-212℉ ± 1.8℉ |
| Power Consumption |
≤ 0.5 W |
| Input Impedance |
≧ 1 MΩ |
| Dimensions (WxHxD) |
100 mm x 27 mm x 70 mm / 3.9″ x 1.1″ x 2.8″ |
| Weight |
0.1 kg / 3.4 ozs |
| |
| Model |
BMS-SMK (String Measure Kit) |
| Voltage Measurement Range |
Up to 750Vdc |
| Accuracy |
±0.2% of normal voltage |
| Temperature Measurement#2 |
0-100°C ±1°C / 32-212℉ ± 1.8℉ |
| Current Measurement#3 |
0-3000 A ±3% |
| Input Power Supply Range |
35-60 VDC |
| Power Consumption |
≤ 3 W |
| Input Impedance |
≧ 1 MΩ |
| Dimensions (WxHxD) |
100 mm x 27 mm x 70 mm / 3.9″ x 1.1″ x 2.8″ |
| Weight |
0.09 kg / 3.1 ozs |
| #1 Maximum transmitting distance is rated at 50 m in a non-concealed room or cabinet. Recommended distance is less than 20 m for optimal performance. |
| #2 Optional Temperature Sensor is required for temperature measurement. |
| #3 Optional hall current transformer is required for battery current measurement. |
|
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex |
