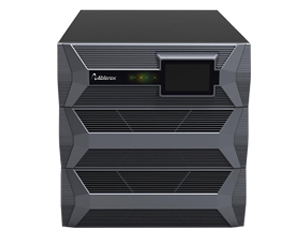

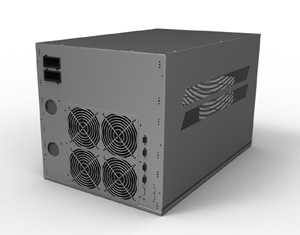

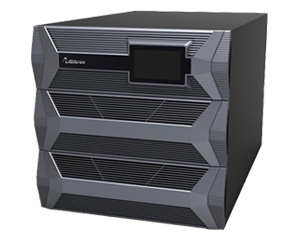

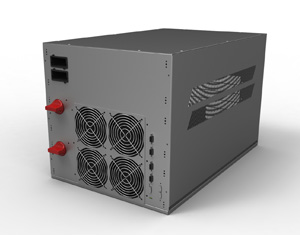

MODEL		Bric 30K
INPUT	Voltage	320 ~ 480 V **
	Frequency	45Hz ~ 65Hz
	Phase	Three phase Four wire + G
	Power Factor / THDi	≧ 0.99 at linear load / < 3%
Output	Voltage	380/400/415V 3 phase + N ±1%
	Capacity	30KVA / 30KW
	Power Factor	1.0
	Frequency	± 3Hz or 1Hz(selectable)
	(Synchronized Range)
	Frequency(Battery Mode)	50Hz/60Hz ± 0.1% unless synchronized to line
	Crest Factor	3:1
	Harmonic Distortion	< 3 % (at full linear load)
	Output Waveform	Pure sine wave
	Transfer time(AC to DC)	0 ms
	Efficiency	> 94%
	DC start	Yes
Battery***	Number of batteries	32~40
	Rated Battery Voltage	384~480Vdc
Display	LCD touch panel	Input Voltage / Input Frequency / Output Voltage / Output Frequency / Load Percentage / Battery Voltage / Temperature

Alarm	Audible and Visual	Line Failure, Battery Mode, Battery Low, Overload, System Fault Conditions
Protection	Overload capacity	110% for 60min. ; 125% for 10min. ; 150% for 1min.
Physical	Dimensions (HxWxD in mm)	440x430x760 / 17.3x16.9x29.9
	Weights (kgs)	74 / 163.14
Environmental	Operation Temperature	0-40℃
	Noise Level	＜60dBA from 1 meter
	Altitude	1000 m without de-rating
	Humidity	0 to 95% (Without condensation)
Communication Interface	Standard	RS-235, RS-485
	Option Solts	Relay Card , SNMP Card
Standards and Certifications	Safety	IEC/EN 62040-1 **
	EMC	IEC/EN 62040-2 **
	Markings	CE **

* Specifications subject to change without notice.
**Depending on the model and voltage, more information please contact with Ablerex
*** External Battery bank
