| Model |
JP1000 |
JP1500 |
JP2000 |
JP3000 |
| Input |
Voltage |
110/115/120/220/230/240 +/-25%, DIP Switch Selectable |
| Frequency |
50/60+/-5%(Auto Sensing) |
| Output |
Voltage |
AC Mode |
Increase 15%(input -9%~-25%), Decrease 15%(input +9~+25%) |
| Inv. Mode |
110/115/120/220/230/240 +3%~-10% |
| Capacity |
1000VA/600W |
1500VA/900W |
2000VA/1200W |
3000VA/1800W |
| Frequency |
50/60Hz ±0.2% |
| Output Waveform |
Pure Sine Wave |
| Transfer Time (AC to DC) |
2-6ms typical |
| DC Start |
DC START |
50Hz / 60Hz ±0.1% unless synchronized to line |
| Battery |
Number of batteries |
2pcs |
4pcs |
| Type |
Sealed Lead Acid Maintenance Free |
| Capacity |
12V/7AH |
12V/9AH |
12V/7AH |
12V/9AH |
| Rated Battery Voltage |
24Vdc |
48Vdc |
| Recharge Time (to 90%) |
2~4 hours |
| Display |
ED Panel(2 Buttons) |
LED: Utility Normal, Backup, UPS Fault and Battery’s conditions |
| LCD Panel(3 Buttons) |
Numeric: Load Level(%), Battery Level(%), |
| Sign: Bypass, AVR Boost/Buck, Battery Low/Replace/Fault, UPS Fault, Site Wiring Fault, Overload |
| LED: Utility Normal(Green), Backup Mode(Amber), Fault(Red) |
| Self-Diagnostics |
Upon Power on and Software Control |
| Alarms |
Audible and Visual |
Line Failure, Battery Low, Overload and System Fault Conditions |
| Protection |
Overload |
AC Mode |
>110% Buzzer continuously alarms & shuts down after 10 minutes |
| Inv. Mode |
>120% Buzzer continuously alarms & shuts down after 10 seconds |
| Short Circuit |
AC Mode |
Input Fuse & Electronic Circuit |
| Inv. Mode |
Electronic Circuit |
| Physical |
Dimensions (WxHxD in mm) |
173x247x369 |
173x247x427 |
| Weight(kgs) |
13 |
15 |
22 |
24 |

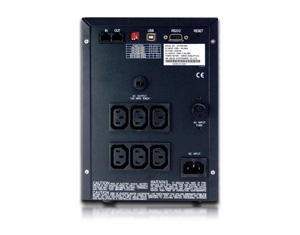

| Outlets(NEMA/IEC) |
6/6 |
| Environment |
Operation Temperature |
0°to 40°C |
| Humidity |
0 to 90% (Without condensation) |

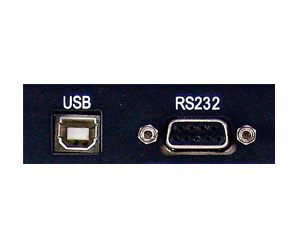

| Interface |
Interface Type |
Standard RS232/USB |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
| Standard and Certifications |
Safety |
EN62040-1-1 |
| EMC |
EN62040-2, EN61000-3-2, EN61000-3-3 |
| Markings |
CE |
*Specifications subject to change without notice.
**Depending on the model and voltage, more informaion please contact with Ablerex |
|
|
