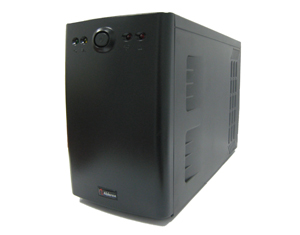

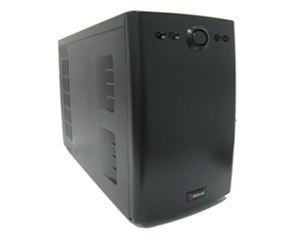

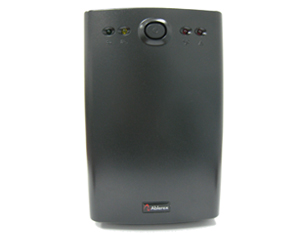

| Model |
VTPro1000 |
VTPro 1500 |
| Input |
Voltage |
115/230Vac+/-25% |
| Frequency |
50/60Hz+/5Hz |
| Output |
Voltage (Backup Mode) |
115 or 230Vac +/-5% |
| Capacity |
1000VA / 600W |
1500VA / 900W |
| Frequency (Battery Mode) |
50/60Hz ±1Hz |
| Output Wave Form |
Simulated Sine Wave |
Transfer Time
(AC to DC) |
2 ~ 6ms typical |
| DC START |
Yes |
| Battery |
Number of batteries |
2pcs |
| Type |
Sealed Lead Acid Maintenance Free |
| Capacity |
12V/7AH |
12V/9AH |
| Rated Battery Voltage |
24Vdc |
| Recharge Time (90%) |
8 hours |
| Display |
LED Panel |
4 LEDs for Line, Backup, Fault and Overload |
| Self-Diagnostics |
Upon Power on and Software Control |
| Alarms |
Audible and Visual |
Line Failure, Battery Low, Overload and Fault Conditions |
| Protection |
Overload |
AC Mode |
Buzzer continuously alarms |
| Inv. Mode |
>100%~<109% Buzzer continuously alarms |
| >110% UPS shuts down after 10 seconds |
| Physical |
Dimensions WxHxD (mm) |
147x360x234mm |
| Net Weight (kgs) |
13 |
16 |
| Outlets (NEMA/IEC) |
4 NEMA5-15R/4 IEC320-C13 |
| Enviroment |
Operating Temperature |
0 to 40 ℃ |
| Humidity |
95% RH Maximum, Non-Condensing |
| Interface |
Interface Type |
USB(RS232 optional) |
| Standard and Certifications |
Safety Standard ** |
EN62040-1-1 |
| EMC Standard ** |
EN62040-2, EN61000-3-2, EN61000-3-3,FCC Class A |
| Marks ** |
CE, UL, cUL |
|
|
|
|
|
| *Specifications subject to change without notice. |
|
|
| **Depending on the model and voltage, more information please contact with Ablerex |
|
|
